Product Summary

Absolute Maximum Ratings (Ta = 25°C)
Characteristic Symbol Rating Unit
Forward current IF 50 mA
Forward current
derating (Ta ≥ 25°C) ΔIF / °C ?0.5 mA / °C
Pulse forward current
(100μs pulse 100pps) IFP 1 A
Reverse voltage VR 3 V
LED
Junction temperature Tj 125 °C
Forward current IFD 50 μA
Detector Reverse voltage VRD 10 V
Junction temperature Tj 125 °C
Storage temperature range Tstg ?55 to 125 °C
Operating temperature range Topr ?40 to 85 °C
Lead soldering temperature (10 s) Tsol 260 °C
Isolation voltage
(AC, 1 min., R.H. ≤ 60%) Note 1 BVS 2500 Vrms
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: Device considered a two terminal device: Pins 1 and 3 shorted together and pins 4 and 6 shorted together.



Recommended Operating Conditions
Characteristic Symbol Min Typ. Max Unit
Forward current IF ― 20 25 mA
Operating temperature Topr ?25 ― 85 °C
Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the
device. Additionally, each item is an independent guideline respectively. In developing designs using this
product, please confirm specified characteristics shown in this document.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

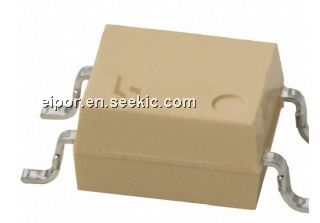

TLP190B(TPR,U,C,F)
TLP190B(TPR,U,C,F)

Toshiba

Photodiode Output Optocouplers Photovoltaic Miniflat

Data Sheet

0-1520: $0.89
1520-2000: $0.77
2000-5000: $0.71
